Emotiva DMC-1 Preamp Processor Review
Emotiva DMC-1 Preamp Processor
Summary
- Product Name: DMC-1
- Manufacturer: Emotiva
- Performance Rating:
- Value Rating:
- Review Date: June 14, 2005 20:00
- MSRP: $ 2495
- Specifications
-
Surround Formats: Dolby Digital EX, Pro Logic IIx, DTS-ES Discrete 6.1 and Matrix 6.1, DTS Neo:6, DTS ES 96/24
DSP: Motorola / Free scale DSPD56367
Audio DACs: Analog Device AD1853
Audio ADCs: CS5394

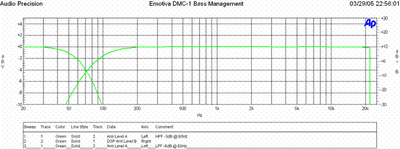

Crossover: Left/Right: 40-160Hz in 10Hz increments; Center/Surrounds: 40-160Hz in 10Hz increments
Remote: MX-500 fully-backlit pre-programmed universal learning remote
Video Inputs: 3 (assignable) 100MHz Component Video, 6 sets of composite and s-video inputs
OSD: Available on component, S-video and composite. All S-video and composite signals automatically up converted to 480i component
Video Outputs: Two (2) 100MHz Component video output, 3 composite and s-video outputs, Multi-Zone composite video output
Audio Inputs: 7.1 external multi-channel inputs, 9 assignable stereo analogue inputs, 10 digital inputs (4 optical, 6 coaxial)
Audio Outputs: 1 optical and 1 coax digital output, 5 analogue audio outputs including main and Zone2, 7.1 balanced analogue outputs, 7.1 unbalanced analogue outputs plus Left/Ride side "axis" speakers
Additional Connections: RS-232C port for third party control Systems and software updates, 12V IR main/Zone2 remote I/O ports, 2 assignable +12V triggers (Main & Zone 2), inactive IEEE connection, detachable power cord
Dimensions: 17" W x 5.75" H x 15.5" D
Weight: 22lbs
Pros
- Two (2) HDTV-compatible component video outputs
- Fully backlit MX-500 universal remote control
- Easy to setup and use
- Four (4) subwoofer outputs (3 RCA; 1 XLR)
- Balanced 7.1 audio outputs
- High current (250mA) 12V triggers
- Phono input
- Flash-upgradeable memory
- 5-year warranty
Cons
- Quirky default remote control behavior
- No active IEEE 1394/Firewire interface
- No HDMI/DVI Video Switching
- No subwoofer distance/delay settings
- Subwoofer calibration test tone inaccurate
- No optional bass management / delay compensation on EXT Analog Inputs
Introduction
