DVIGear DVI-3531a HDMI Converter Scaler

DVIGear's new AV-PC to HDMI Converter / Scaler is targeted towards custom installers and integrators who need a one-solution product to convert incoming audio and video signals to a single HDMI stream. This rather versatile unit can take either DVI-D, component or VGA (PC) input, along with an audio source, and convert the output to a single HDMI stream (with integrated audio). The system can also scale the video input to various output resolutions up to 1920x1200 @ 60Hz. It includes 3D motion-adaptive deinterlacing as well as high-quality analogue to digital converters to maintain audio fidelity throughout the conversion process.

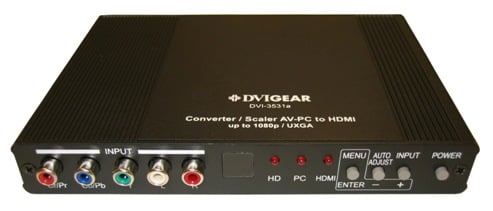

Each input format supports its own stereo audio connection (RCA for component and separate 1/8-inch mini connections for the others). The selected input signal is converted to a digital HDMI signal with embedded audio. This unit accepts a wide range of input signal resolutions and support pixel clock rates up to 165 MHz. Most importantly, it provides user-selectable output resolutions (via on-screen display) up to 1080p and 1920x1200 (W-UXGA) using two high-performance internal scaling engines. Control is provided via the front panel or included IR remote control. Direct input and output source and resolution settings are possible from the remote, making macro programming a breeze.

Key Features

• Supports Analog + Digital HDTV inputs up to 1080p resolution
• Supports Analog + Digital PC inputs to 1920x1200 / 60Hz resolution
• Digital HD Video Output up to 1080p resolution
• Digital PC RGB Output to 1920x1200 / 60Hz resolution
• Supports both YPbPr and YCbCr HDTV input formats
• Analog audio inputs are integrated into digital HDMI output
• Twin high performance scaling engines
• 3-D Motion Adaptive De-Interlacers
• 3-D Noise Reduction
• 3:2 Pull-Down w/2:2 Pull-Down Recovery
• 8 Bit Triple-ADC/PLL
• Intuitive On-Screen Display

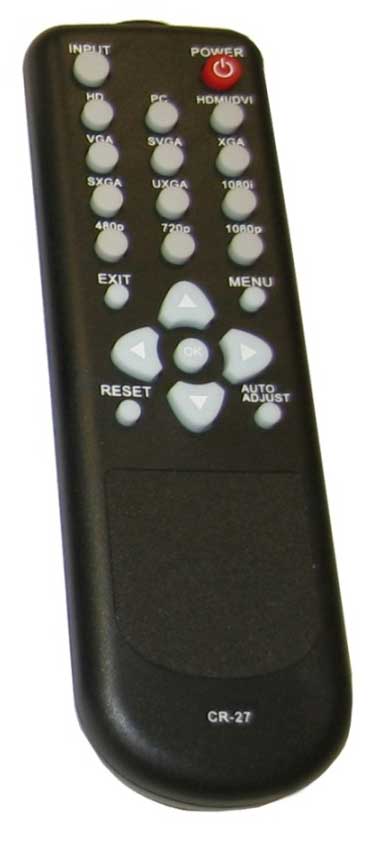

• Front Panel or Infrared Remote Control

Specs

Model Number
DVI-3531a	Converter / Scaler AV-PC to HDMI

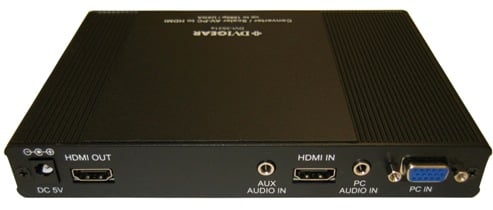

Input Connections
HDMI - digital HDTV Video	via 1x HDMI Connector
PC - RGB Video	via 1x HD-15 Connector
HD - Analog Component HDTV Video	via 3x RCA Connectors
Input Format / Resolutions
Analog / Digital PC RGB	up to 1920x1200 / 60Hz
Analog / Digital HDTV	YPbPr / YCbCr up to 1080p
DVI format	Single-Link DVI-D
Signal Clock Rates Supported	up to 165 MHz
Output Connection
HDMI Digital HDTV Video	via 1x HDMI Connector
Output Format / Resolutions
HDMI Digital PC	up to 1920x1200 / 60Hz
HDMI Digital HDTV	up to 1080p
Scaling Engine
Number of Engines	Two (2)
Phased Lock Loops Employed	8-bit triple ADC
De-Interlacers	3D Motion Adaptive
Noise Reduction	3D
Pull-Down	3:2 + 2:2 Recovery
HDMI Receiver	HDMI (v1.2a) and DVI + HDCP
Image Component Processing	Full Time / Full Range
Audio Inputs
Analog Stereo (Line in)	via 2x RCA Connectors
PC Audio Stereo In	via 3.5mm Stereo Audio Connector
Aux Audio Stereo In	via 3.5mm Stereo Audio Connector
Mechanical
Size (H x W x D)	1” x 7.0” x 5.35” (25.5 x 179 x 136 mm)
Weight (Net)	15.8 Oz (448 g)
Warranty
Limited Warranty	1 Years Parts and Labor
Environmental
Operating Temperature	0° to +48° C (+32° to +120° F)
Operating Humidity	10% to 85%, Non-condensing
Storage Temperature	-10° to +70° C (+14° to +158° F)
Storage Humidity	10% to 85%, Non-condensing
Power Requirement
External Power Supply	Input: 100-240VAC @50/60Hz Output: 5VDC @2A
Regulatory Approvals
Converter Unit	FCC, CE, RoHS
Power Supply	UL, CE, CSA, RoHS
Accessories Included
1x External AC Power Adapter, 1x User Manual, 1x IR Remote Control
1x HD-15 Male to HD-15 Male Cable
1x 3-RCA Male to 3-RCA Male Cable
