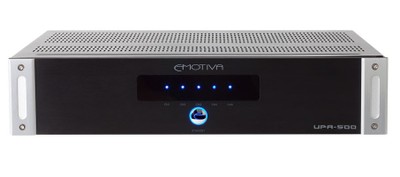

Emotiva UPA-500 Five Channel Power Amplifier Measurements and Analysis
All measurements were conducted per the Audioholics Amplifier Measurement Standard using our Audio Precision APx585 8 Channel HDMI Audio Analyzer. When Emotiva found out we were using this test gear, they went out Nicky Santoro style (played by Joe Pesci) from Casino and bought the very same test gear. This is a considerable investment in test gear that no other home theater publication and only a select few consumer A/V manufacturers make, which shows how serious Emotiva is about amplifier design and testing.
I did some quick spot-checking on the UPA-500 amplifier gain structure to ensure it could be properly driven with a wide assortment of preamps or receivers. My personal criteria for amplifier gain structure is that it should be able to hit full power when driven with 2Vrms. The UPA-500 hits full gain much sooner per my measurements which confirm Emotiva’s claim of 850mV. Seeing how most budget receivers preamp outs cannot deliver a full 2Vrms, this extra sensitivity Emotiva employed makes a lot of sense. I measured 29.7dB voltage gain (8 ohm loaded) which was very close to Emotiva’s 29dB specification.
Signal to Noise Ratio

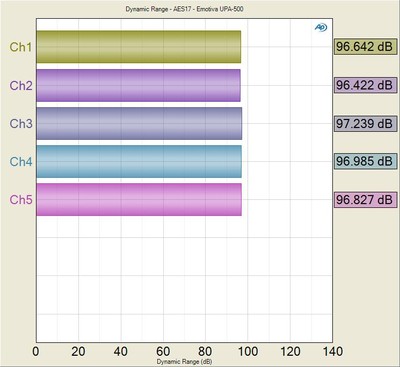

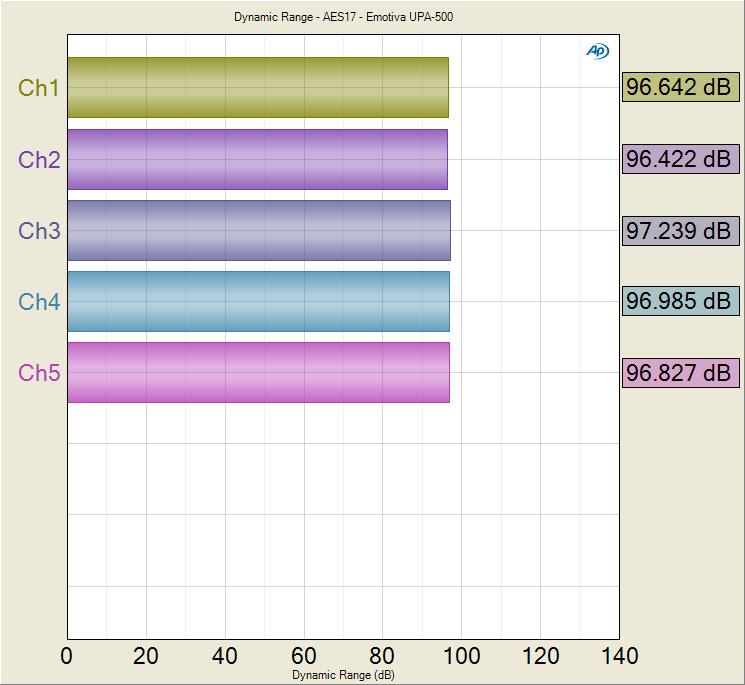

Emotiva UPA-500 SNR @ 1 watt (A-weighted)
Just like past UPA series amps from Emotiva, the UPA-500 exhibited a commendably low noise floor. At 1 watt, I measured 97dB (A-weighted) which is what Emotiva specs for this amp. If you want the un-weighted noise floor, you can subtract about 10dB from this measurement. At 117 watts, I measured 117dB (A-weighted).
Frequency Response

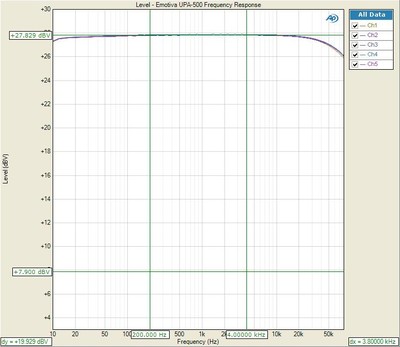

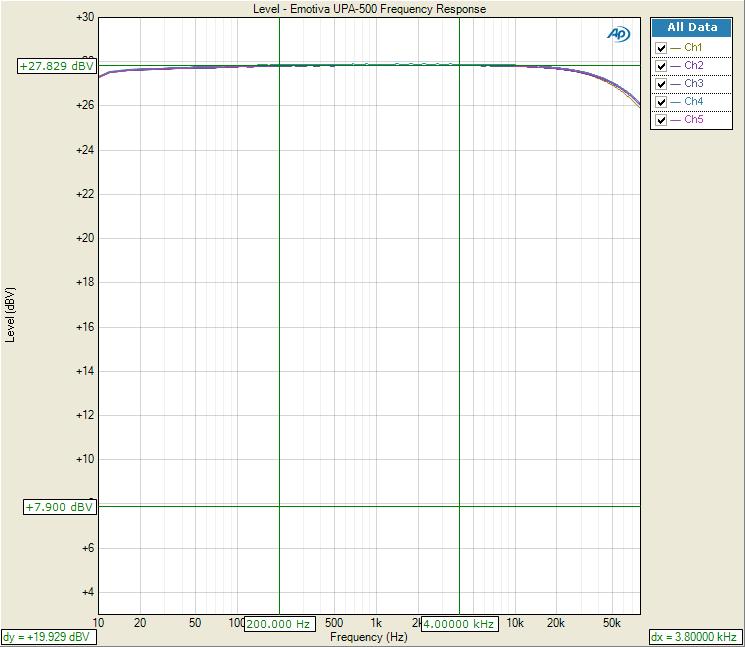

Emotiva UPA-500 Frequency Response @ Full Rated Power
It was no surprise to me that the Emotiva UPA-500 exhibited ruler flat bandwidth from 10Hz to 50kHz with a gradual roll-off of about -1dB at 80kHz which is the bandwidth limitation of my test equipment. Emotiva claims the -3dB is 70kHz but I suspect it’s a bit higher based on what I measured here. What I found quite remarkable was the very tight channel to channel frequency response deviation of +/-0.081dB at 1 watt and +-0.10dB at full power. This indicates very tight tolerances in parts selection and excellent overall engineering.
Power Measurements
Using our Audio Precision APx585 8-channel HDMI analyzer, we conducted a full barrage of multi-channel amplifier tests on Emotiva UPA-500. We tested power using three methods all of which were taken at < 0.1% THD + N:
-
Continuous Full Power Bandwidth (CFP-BW) from 20Hz to 20Khz into 8 and 4-ohm loads (up to two-channels)
-
1kHz Power Sweep vs Distortion (1kHz PSweep) - popularized by the print magazines, this is an instantaneous power vs distortion test at 1kHz. The problem with this test is it often masks slew related and or frequency response problems some amplifiers exhibit at the frequency extremes, and thus inflates the measured power results. It does provide an instant gratification # for consumers to argue over on the forums so we are now incorporating this test to please the masses.
-
Dynamic PWR - 1kHz CEA-2006 Burst Method testing. This is a dynamic power measurement adopted from the car industry similar to IHF method only a bit more difficult for an amplifier and more representative of real musical content.
Keep in mind most review publications don't do continuous power measurements and they usually publish power measurements into clipping at 1% THD + N. Our measurements are very conservative as we use a dedicated 20A line with no Variac to regulate line voltage. We constantly monitor the line to ensure it never drops more than 2Vrms from nominal which in our case was 120Vrms.
For more info on amplifier measurements, see: The All Channels Driven (ACD) Test
Emotiva

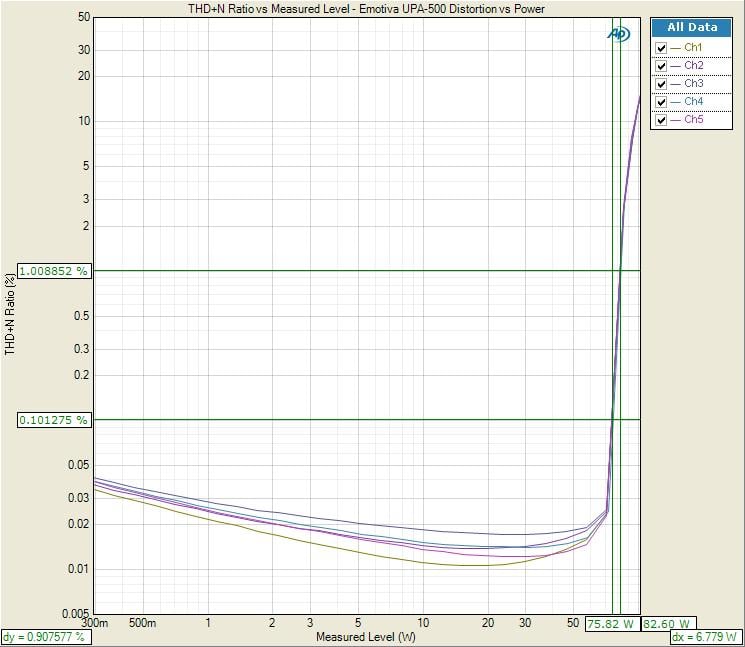

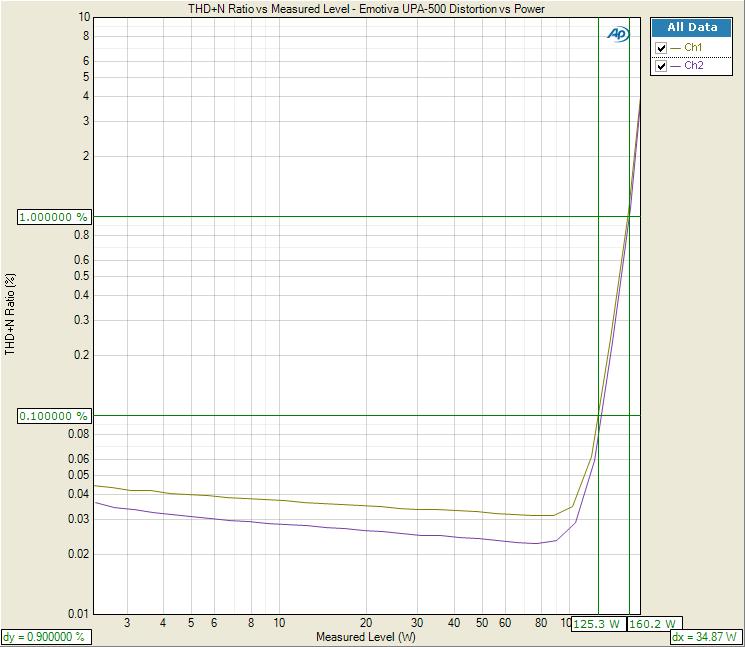

UPA-500 1kHz Power Test
Left
Pic: ACD, 8 ohms; Right Pic: 2 Channels driven, 4 ohms
Emotiva

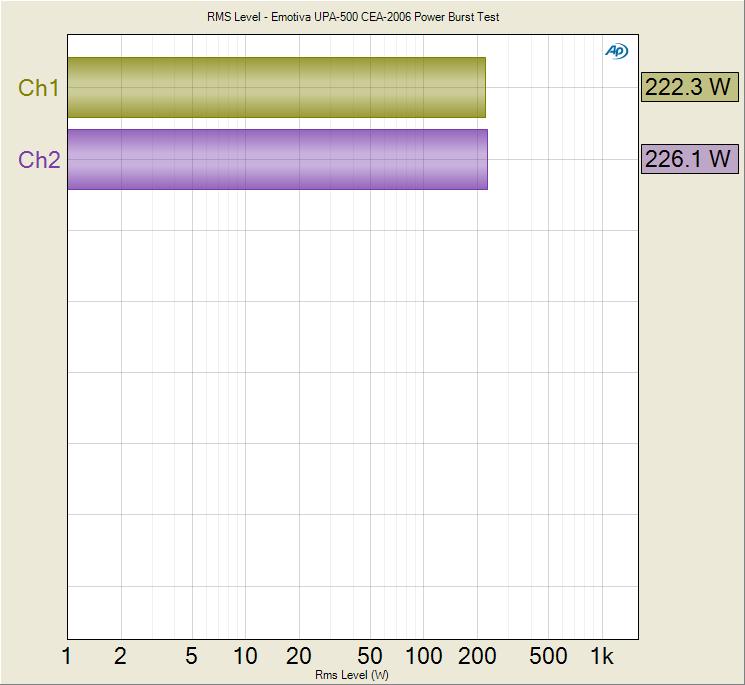

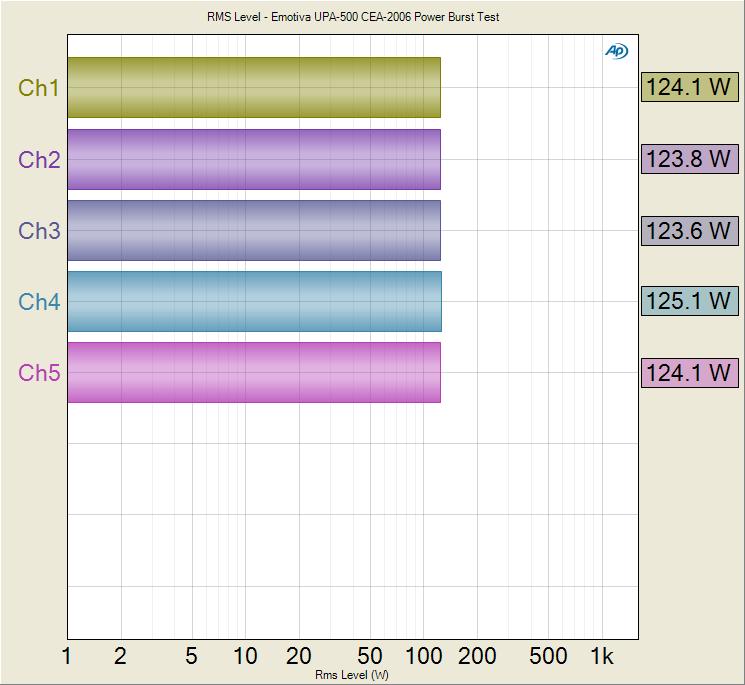

UPA-500 Dynamic Power Test (1kHz)
Left
Pic: ACD, 8 ohms; Right Pic: 2 Channels driven, 4 ohms
-
# of CH Test Type Power Load THD + N 1 CFP-BW 117 watts 8-ohms 1% 1 CFP-BW 225 watts 4-ohms 1% 5 1kHz Psweep 75 watts 8-ohms 0.1% 5 1kHz Psweep 82 watts 8-ohms 1% 2 1kHz Psweep 125 watts 4-ohms 0.1% 2 1kHz Psweep 160 watts 4-ohms 1% 5 Dynamic PWR 125 watts 8-ohms 1% 2 Dynamic PWR 225 watts 4-ohms 1%
Emotiva UPA-500 Power Measurement Table
Emotiva rates the UPA-500 as follows:
-
80 watts x 5 continuous @ 8-ohm (0.01% THD)
-
120 watts x 5 continuous @ 4-ohm (0.01% THD)
Emotiva doesn't specify at what frequency they rate their power output, but I assume they mean 1kHz which is how most manufacturers specify all channels driven power claims. My measurements in this scenario verified Emotiva’s power claims but mine were higher in distortion which is likely due to the fact that Emotiva does their power tests holding the line voltage constant whereas we don’t. If you compare our power sweep results to the dynamic power results you get about 1.8dB of headroom for all channels driven into an 8 ohm load and 2.5dB of dynamic headroom into 4 ohms for two channels driven. The power supply exhibits good headroom to deliver quick bursts of dynamic power when the program material calls for it.
FFT Distortion Analysis
Emotiva

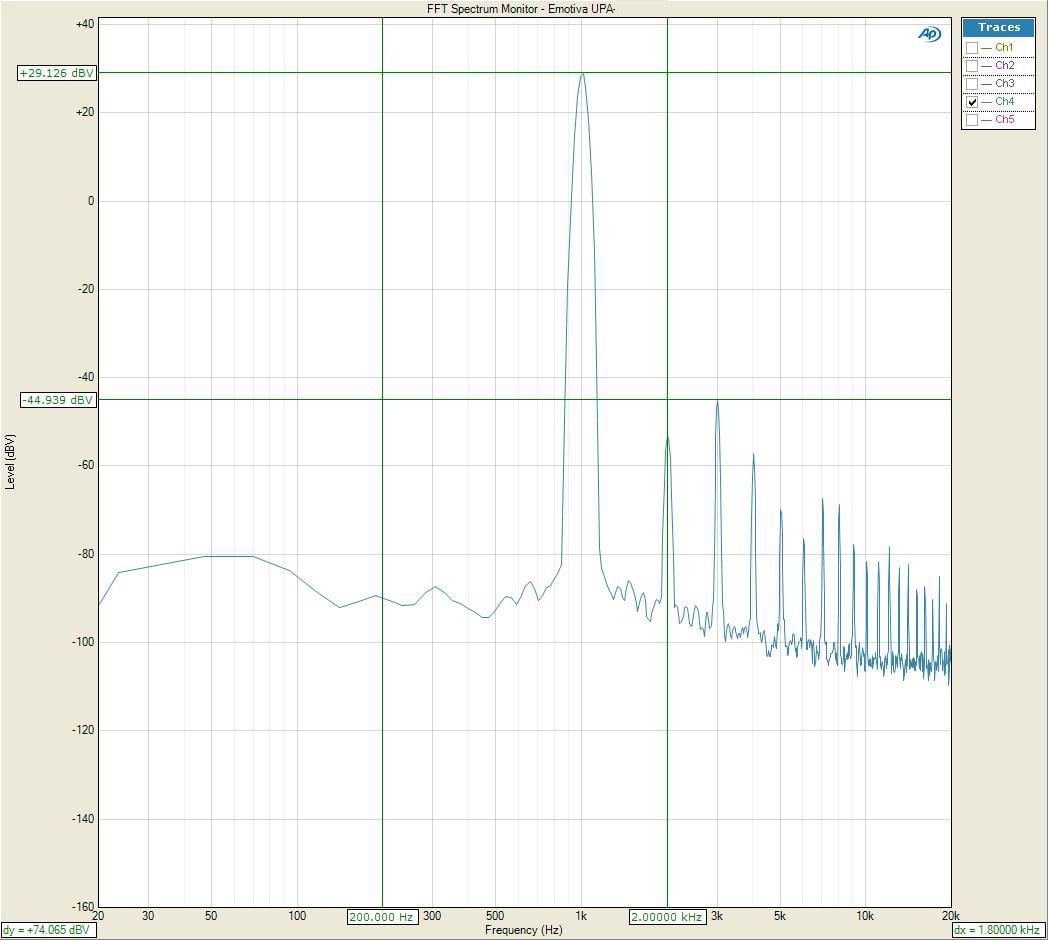

UPA-500 FFT Distortion Analysis
(left
image @ 1 watt ; right image @ full rated power)

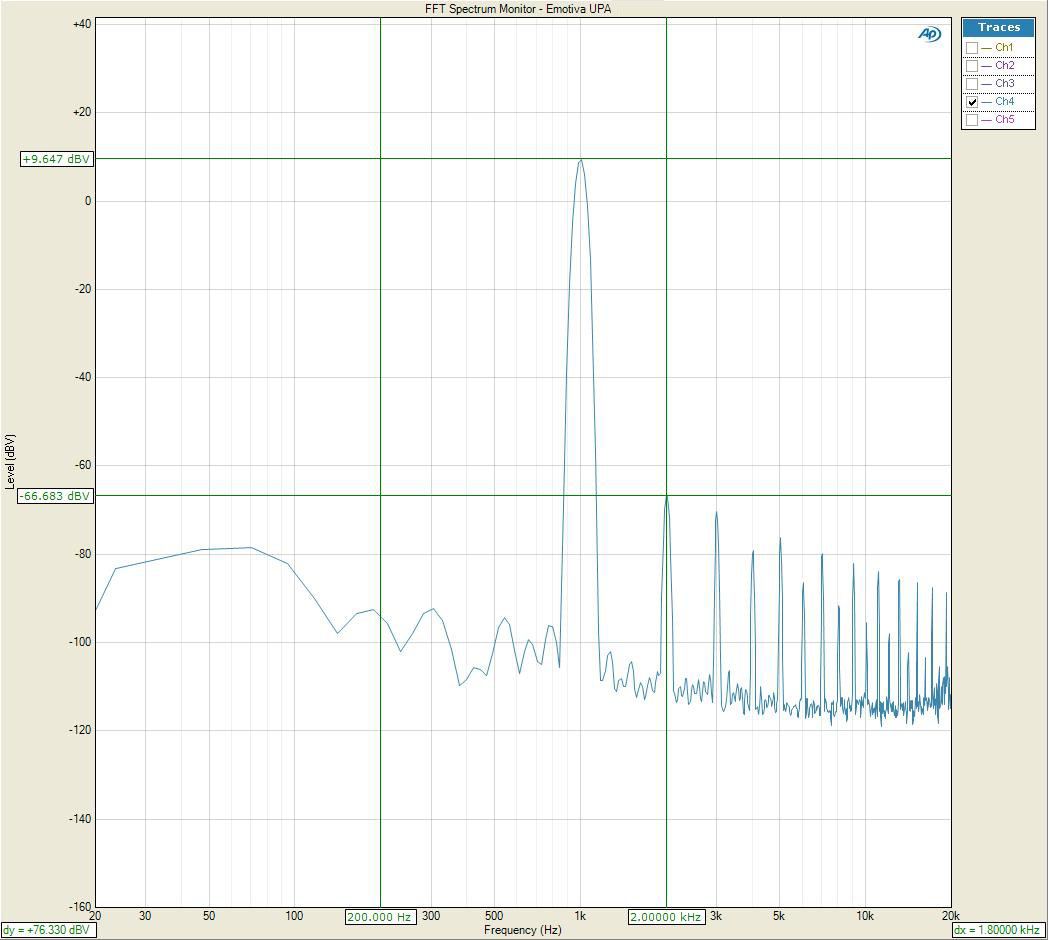

I ran FFT distortion plots at 1 watt (left pic) and full rated power (right pic) to determine how clean this amplifier really is. At 1 watt, the spectral distortion wasn’t exactly stellar with the second order harmonic (9.55 + 66.58)dB being 76.2dB down from the fundamental or 100*alog^-1(-76.2/20) = .016%. At 106 watts, I observed (29.13 + 44.94)dBV being 74.1dB down from the fundamental or 100*alog^-1(-74.1/20) = .0040% The odd order harmonics start dominating as the amp starts hitting the rails and becoming slew rate limited at very high frequencies. These are decent measurements, but certainly not the cleanest distortion spectrum I've seen compared to some much higher priced well-executed designs.
Crosstalk

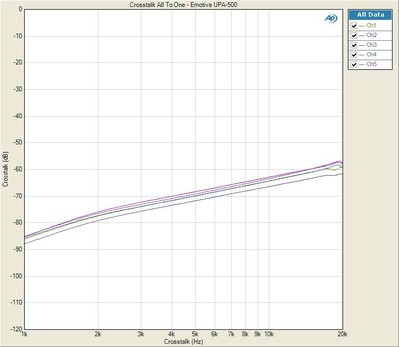

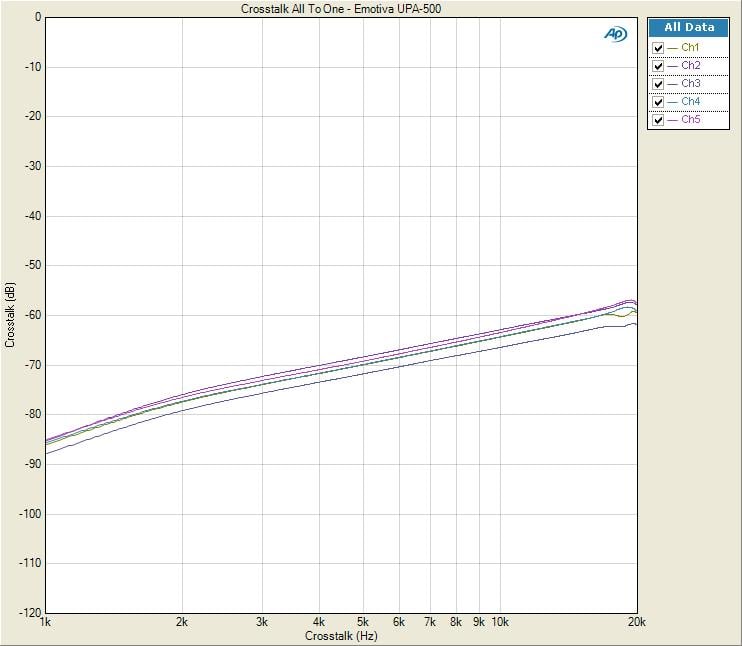

UPA-500 All-to-One Crosstalk at Rated Power
The UPA-500 exhibited very good channel to channel crosstalk performance, much improved over the older and more expensive UPA-7 actually. With all channels acting as the noise source or disturber, I measured each idle channel one at a time to determine the worst case channel to channel crosstalk. At 1kHz the UPA-500 yielded -85dB @ 1kHz and -60dB at 20kHz for its noisiest channel. I consider anything less than -40dB @ 10kHz acceptable so the UPA-500 met that minimum requirement with over 20dB to spare. With only 1 channel acting as the disturber, the adjacent channel produced -95dB at 1kHz and -70dB @ 20kHz, again very good results.
