Emotiva XPA-2 Two Channel Amplifier Review

by Gene DellaSala — last modified March 01, 2011

Summary

Product Name: Emotiva XPA-2 2-Channel Amplifier
Manufacturer: Emotiva
Performance Rating:
Value Rating:
Review Date: October 15, 2008 18:25
MSRP: $ 799

Specifications

Number of channels: 2
Amplifier Class: Short signal path A/B
Output design: Triple Darlington with ON semiconductor output stages
Differential Drive: Dual Differential input

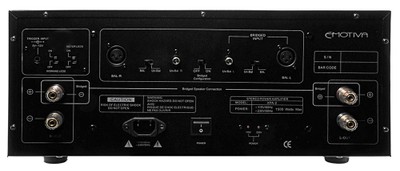

Types of inputs: Both Balanced (XLR) and Un-balanced (RCA)
Type of outputs: 5 way binding post
Display type: Digital VU meters
Metering: 14) Blue LEDS and 1) red per channel
Power output: 250 watts RMS/ channel into 8 ohms, 500 watts RMS/ channel into 4 ohms and 1,000 watts RMS bridged.
THD+N at rated power output: 0.007%
S/N ratio: >100db
Frequency response: 10 to 120Khz (-3db) and 20 to 20 (with less than .15db deviation)
Gain structure: 32db
Transformer size: 1600va mounted in a super structure
Secondary capacitance: 120,000uF
Massive aluminum heat sinks running the length of the amp ensure cool operation and amp longevity
Weight: Approximately 75 pounds
Retail price: $799.00
17” W x 7.75” H x 19” D

Pros

Ungodly power reserves (beats published specs)
Bridgeable at this price?
Runs extremely cool
Superb value

Cons

Retro 1980’s Era LED’s
Makes it hard to justify more expensive amplifier purchases

Introduction

Not only does Emotiva have a winner on their hands with the XPA-2 two channel amplifier, but they’ve literally hit the ball out of the park with this creation rewriting the rule book on high performance amplifiers on the cheap. The XPA-2 is not only the most powerful amplifier that has come across my test bench, but it represents the best value in consumer two-channel amplification that I’ve ever seen. Quite frankly, when I think about it, the XPA-2 is a lone wolf in a pasture of sheepish amplifiers.
