Axiom Audio A1400-8 Setup
Moving the Axiom
A1400-8 amp around my test bench and home theater rack proved much easier than
the typical power amplifier I review.
Despite its enormous power supply and bodacious output capability, it’s
a lightweight on the scale, barely hitting 60lbs. This is just the way I like
electronics to be given my numerous back issues caused by years of abusive weight training and lifting heavy Class A/V amplifiers. The one unusual thing you will find about

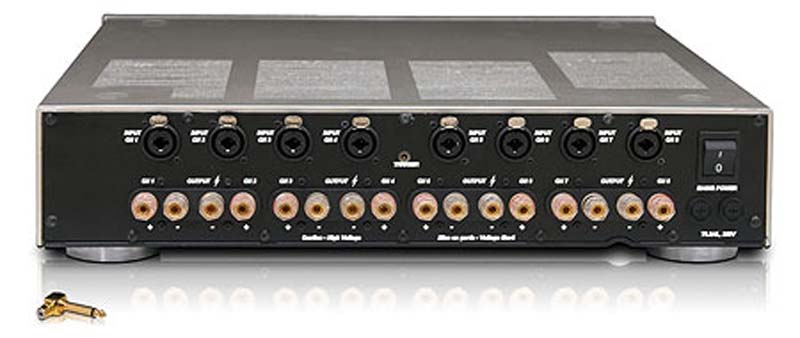

this amp is the absence of unbalanced connectors. When I first heard about this, I thought to
myself, are they kidding? Nope they
weren’t. In order to minimize chassis

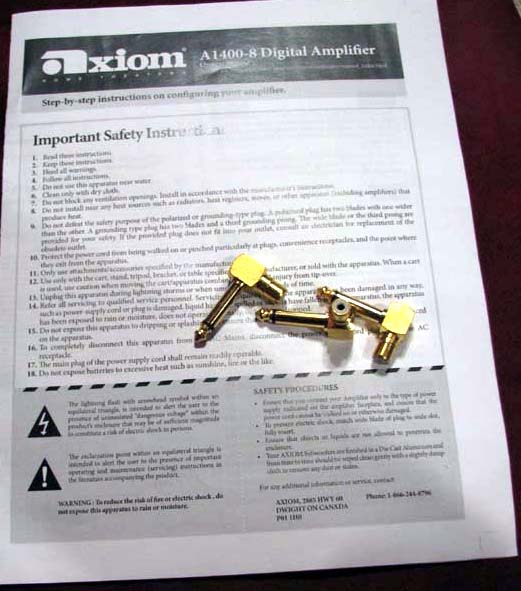

height, they went with all balanced connectors and included gold-plated
straight and right angled unbalanced phono and RCA mating connectors. I’ve never seen this approach before with
consumer gear but I liked it. I tested
both the balanced locking connectors and the RCA mating connectors and they fit
nice and snug. The speaker binding posts
are a bit cramped in the chassis but luckily each adjacent-channel pair speaker connector is the ground side to
prevent arcing or shorting.

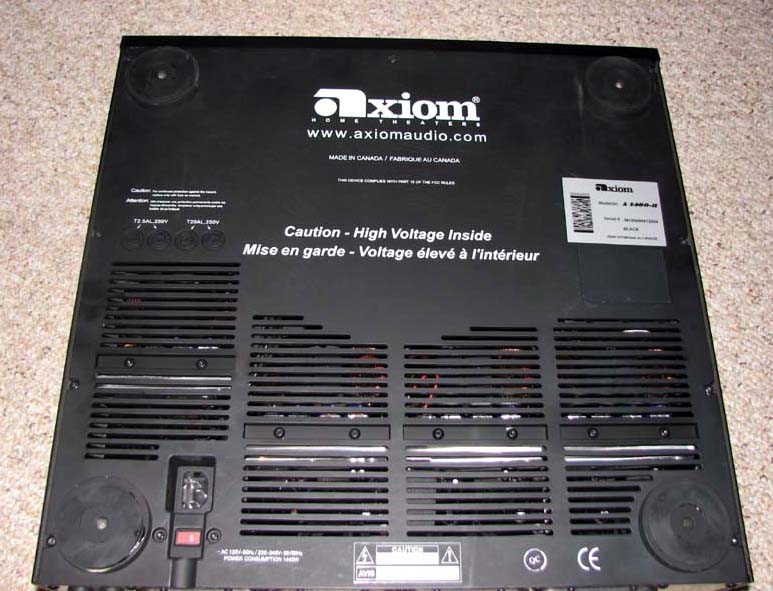

Speaking of shorting, I’ve never seen so many warning labels slapped onto an amplifier before. There are numerous shock hazard logos and high voltage notifications placed on the amp chassis and user manual and they made it exceedingly hard to remove the top chassis cover to get a peek inside. Considering that the power supply working voltage is very close to the rated wall voltage and this sucker is capable of dumping all of that current into any given channel at a time, I certainly understand their cautionary notes and encourage all users to heed their warnings.

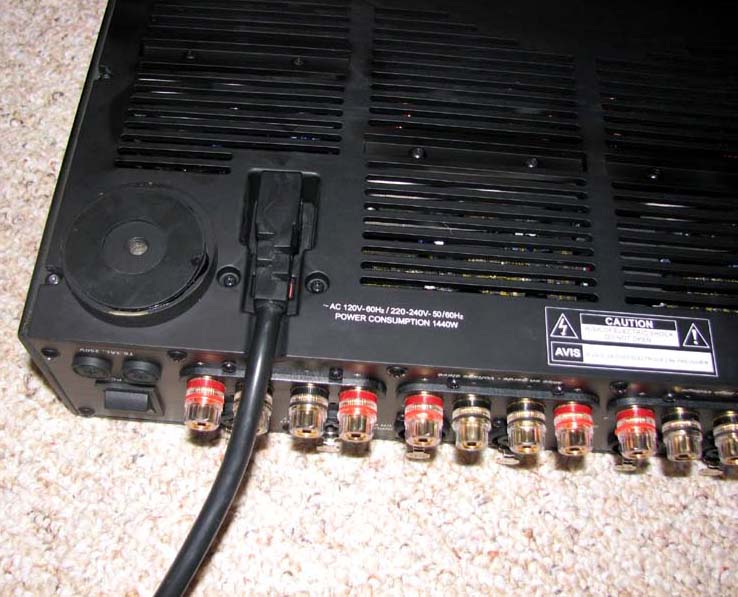

The power receptacle is located at the bottom of the chassis making
this amp difficult to rack mount (more on this later) and the unit comes with a
6-ft 14AWG 3-prong power cord. The
master switch is located on the back panel and the amp has trigger capability
via a mini plug. The trigger worked
correct only when the front panel standby button was depressed as stated in
step 6 of the slim but useful user manual.
I placed the A1400-8 on my esoteric Audiav Crystal Series C4 AV Rack and connected it up with Kimber 8PR speaker cable, Sonicwave balanced cables and Blue Jeans 1694A composite RCA cables when conducting unbalanced tests. I used my Denon AVP-A1HDCI and Denon AVR-5805mkII as the preamps, the Denon DVD-5910CI and Yamaha MCX-2000 as the sources. The A1400-8 was powered by my APC S20 power conditioner that had no troubles at all powering this amplifier even with its enormous inrush current draw during power up. Axiom recommends NOT plugging this amp into a power conditioner, which for 90% of the ones on the market, I’d tend to agree with, the APC S20 being one of the few exceptions. I utilized my RBH Signature T30-LSE reference series speaker system and threw in my Status Acoustics Decimo bookshelf speakers for comparative purposes.
