Emotiva MPS-1 Modular Amp

Features:

• Audiophile quality, modular power amplifier.
• True card cage design can accommodate up to seven 200 watt (@8 ohms) mono block power modules - power modules glide in and out on Nylon rails
• Power modules feature independent 350VA, low noise toroid power transformers w/ high speed rectifiers and 48,000uF of storage per channel for a 336,000uF total, across seven independent channels
• High efficiency Class H power amplifier design, minimizes power losses and allows cool operation
• Complementary, discrete power amplifier design incorporating high current, high speed, Toshiba power devices
• Truly transparent, integrated soft clip circuitry
• Balanced XLR and RCA inputs
• Channel status indicators for standby, operate, and fault
• THD less than .015%, 20Hz-20kHz with 80kHz measurement bandwidth
• DC offset, less than 1mv, servo controlled.
• Completely Stable into 2 ohm loads
• *Minimum* 200 watts/8 ohms - 300 watts/4 ohms - 400 watts/2 ohms - seven channels driven, mains limited
• Frequency response 20Hz-20kHz +/- 0.1 dB, or 10Hz-100Khz +/- 3dB
• Signal to Noise Ratio - 100dB, un-weighted
• Input impedance - 20k ohms.
• Crosstalk between ANY channels - greater than 120dB
• Fully protected from all fault conditions with ultra quiet, module mounted, fan assisted cooling for severe duty cycle applications
• Soft start circuitry. Silent turn on/off - No audible transients
• Signal sensing auto turn on or remote trigger. Soft touch power switch
• All aluminum capacitors are premium quality, low ESR, 105°C rated for high reliability and performance.
• Doubled sided, plate through, glass epoxy, FR4 PCB's used throughout with 2 ounce poured copper on all power sections and ground planes
• Modules are designed for field replacement with the removal of four screws
• 5RU chassis with floating multi-element, milled aluminum faceplate. Indirect cobalt blue illumination of all controls and main panel
• Black lacquered, piano finished wood side panels are included, as are milled aluminum rack ears for professional installations
• Massive, multi element milled aluminum faceplate with "floating" wing detail - indirect, cobalt blue panel illumination with panel dimmer
• Power consumption during standby - 3 watts or 60 watts at idle
• IEC power inlet, 120/230 VAC user configurable on modules
• Weight - 115 lbs.
• Dimensions: (HxWxD) 7 ¾" x 18 ½" x 19 ¼"
• $1999 (package discounts available)

Both the DMC-1 and MPS-1 will be available late 2004

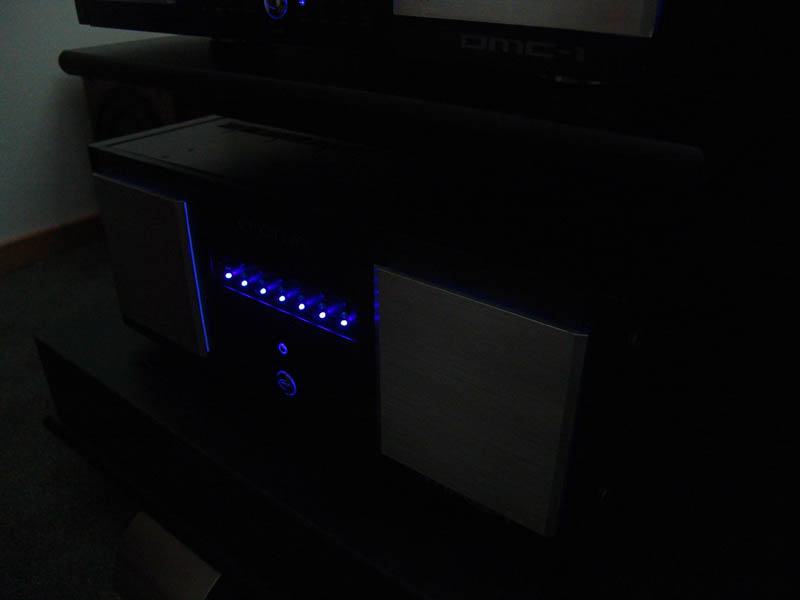

Soothing blue lights make for a stunning visual night appearance for the MPS-1.
