8 Channel Power Amplifier

It's been a long time coming but as you recall the mantra from the Heinz Ketchup commercial - " best things come to those who wait ", fits Axioms new "super amp" like a glove (and not the OJ Simpson type). Rather than embarking down the safe, yet dull, design path of classic linear A/B designs, Axiom once again decided to push the envelope of performance by going digital - just like they did a nearly two years ago with the EP500 and EP600 subwoofers.

Digital amps are growing in popularity for home theater today which only a few years ago were mostly limited to car audio amplifiers, subwoofer amps and low fidelity applications. As with all things, technological advancements allows for practical expansion of good ideas into the realm of infinite possibilities.

While there are several companies today offering digital or switching amplifier designs, only a handful of them are actually implementing them correctly for high fidelity applications.

To understand some of the issues with Digital and Switching Amp designs, please refer to these articles:

Switching Amplifiers: The Technology and the Issues

Design Overview

The new Axiom Audio eight (8) channel (that's no typo) "digital" amplifier has many differences over others currently deployed in the industry besides the extra channel. The new Axiom multi-channel amplifier is a very high power design using the latest in semiconductor topology. The high clock of 500kHz makes the amplifier non-alias with the music signal applied. It uses a self oscillating Sigma Delta modulator with enhanced protection and safe shut down. The MOSFETs are the latest generation of high current - high speed switching N-channel devices with 16mOhms of Rdson and very low gate capacitance. The analog circuitry is extremely low noise design with four layer G4 boards using 2oz copper foil to ensure plenty of copper for grounding. Proper layout and grounding is imperative in high speed, and high power designs such as this one and the designer must not only obey classic analogue design guidelines but also consider EMI and RFI countermeasures typically employed by RF designers. This is where many manufacturers fall flat on their faces. Typically, they design amplifiers that dump tons of noise above the analogue filter causing AM reception degradation and possible induced contamination of system grounds which can have audible effects down the signal chain.

Another design deficiency commonly found in most digital amp designs is the lack of post filter feedback. There are two likely reasons why so many manufacturers fail to deliver in this imperatively important design aspect: lack of math skills and desire to use cookie cutter designs from IC manufacturers. Axiom Audio put a lot of thought into the post filter feedback of this amplifier which is a proprietary design of theirs. There are several reasons to employ post filter feedback such as improved amplifier stability, low output impedance and to linearize frequency response when driving reactive loads such as real world loudspeakers.

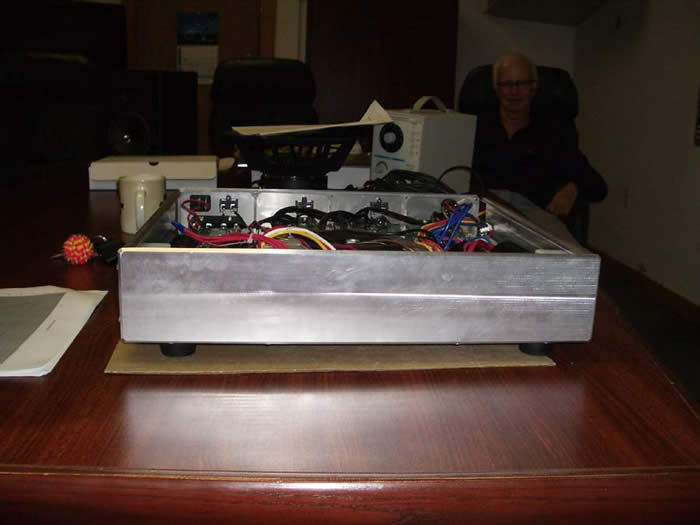

In order to deliver ultra high power and take full advantage of the high efficiency of Class D amplifier design, Axiom Audio employed one of the most robust power supplies I've ever seen in an amplifier. As you can see centered in the prototype amplifier (right pic), the 1500VA power transformer is huge. The total capacitance for the amplifier is a whopping 139,520uF at 100V - 105 degree C of which 7520uF is topical at the MOSFETs (there are other supply caps that would bring the total over 140,000). It's rare to find 100V power supply caps in a commercial power amp and even rarer to find ones rated to 105 degrees C. This is extremely costly for the manufacturer but a necessity to ensure enough margin for high voltage rails, and higher reliability while also minimizing ESR (effective series resistance). Axiom claims a Power Factor (PF) of 0.9 which means the supply can literally convert 90% of the power it sources from the wall into usable power. Most amps' power supplies have around a 70-75% Power Factor and traditional linear A/B amps efficiency run in the ballpark of around 40-50%. Add these two factors together and it makes it quite impossible for a classic linear A/B design to deliver anywhere near the full power capabilities from a 15A line to the speakers. In contrast, the new Axiom amp will nearly deliver all of the power from the wall outlet.

The rail voltage is +/- 90V unloaded (amps not driven but connected) with 120VAC on the primary. The primary is 120V/240V switchable 50Hz or 60Hz. The toroid transformer uses a core that minimizes 50Hz losses when used in 50Hz countries. Each toroid is wound exactly with the same number of turns. This is a significant achievement by the transformer designer as it allows the manufacturer to use one power supply for all countries thus reducing inventory costs, as well as industry approval certification costs.

Preliminary Power Tests

I had the folks at Axiom Audio run some preliminary power tests for me and they came up with the following unusual and extremely impressive results.

At first glance, these power measurements look unusual. Allow me to clarify. Firstly, these are CONTINUOUS unclipped power measurements taken on a 15A unregulated line. This is the first amplifier I've ever seen which can actually dump its entire power supply into one channel if called upon. This amp truly acts like an ideal voltage source doubling its power each time the load impedance is halved. With a single 1500VA transformer, highly robust power supply design, and ultra efficient amplifier topology, Axiom has managed to design an amplifier that could deliver nearly the full power from the wall outlet with minimal losses.

As you can read in my All Channels Driven (ACD) Amplifier Article , I am not a fan of the traditional ACD test most publications use when measuring amplifier. Luckily the industry is starting to catch on by developing a more practical, real world test scenario for multi-channel amplifiers. The new CEA ruling suggests testing 1 channel at full power with all other channels being driven to 1/8th the rated power. Hence the power measurements in the last tabulated row above titled "7 (CEA Industry Rating)". As you can see, the Axiom amp has plenty of juice to deliver continuous high power to any given channel if called upon while still keeping up with the demand of supplying all of the other channels power. Under this test condition, I would consider 90% rated power delivery to the channel under test to be an excellent achievement when all other channels are driven to 1/8th power. Axiom blew this notion out of the water by being able to deliver full rated power to the channel under test for 8 and 4 ohm loads. It is likely this amp will set a benchmark in our new amplifier measurement standard (coming soon) as well as for all of their competition to follow suite.

Look on the back of most power amplifiers sold direct to consumers and you will find no safety or regulatory markings. I've always felt a little uneasy about this, especially when dealing with ultra high power amplifiers. Axiom Audio put my concerns at rest as they've informed me their new 8CH amp will in fact carry CSA US-C for North America and CE for global approval. This is a costly process, but ensures the amplifier will meet all of the regulatory safety standards that help protect consumers from fire hazards under scenarios such as power spikes/surges or overload conditions. It also usually serves as a sanity check for the manufacturer that their design is safe to operate by consumers. This is just another example of good design measure the engineers at Axiom Audio have undertaken.

The Mr. Freeze of Amplifiers?

What's the best thing about a digital amp? Aside from its ultra high efficiency and ability to deliver more real world power, they usually run extremely cool which is a paramount concern when packing equipment into tight moderately ventilated spaces such as equipment racks. Tom Cumberland - Chief Designer - managed to persuade me to place my hand right on the power supply and chassis while the amp was fired up and playing full scale into 7 speakers. Normally this would certainly earn the participant the Darwin of the Year award if it were a traditional linear amp, but instead I was safe from scorching my skin as this amp maintained a moderate lukewarm temperature, certainly NOT nearly hot enough to leave that fresh tanning bed smell of cooked human flesh. The amp runs cool, it's super-duper powerful and best of all it comes in a moderately sized chassis (4" H x 17.5" D x 16.5" D) weighing in at a very manageable 50lbs. Retail cost will be between $3,500 to $4,000 with an expected availability by early 2007. We are looking forward to getting our hands on a sample for review. Rest assured I'll be back to report on this new multi-channel amplifier marvel.
