WT3 Setup and Calibration
Introduction
Today’s loudspeaker
DIYer is fortunate in having quite a few choices to select from when it comes
time to choosing the measurement tool (or tools) needed to achieve a successful
project outcome. Critical to the project’s design process is being able to
accurately assess the Thiele/Small driver parameters of the various mid-range,
woofer and subwoofer drivers being considered. (Tweeters are typically handled differently, though accurate tweeter
impedance & amplitude response data are just as essential to the
design process as it is for all other drivers used in the system).
If the budget doesn’t leave room for the pricier measurement tools out there or you’d simply rather spend more on the hardware you pack your cabinets with than on the gear you measure it all with, then Dayton Audio’s WT3 Woofer Tester may be the perfect choice for the job. Its inexpensive, easy to install and use and the accuracy of the data produced can rival that of measurement tools costing 10x as much or more!
First Impressions
Everything comes packed in a smallish box and the kit
includes the hardware, a hardcopy, single page quick-start quide, the
installation CD and a calibration resistor.
The front page of quick-start guide contains all the information needed to get the software & hardware installed, the system calibrated and also includes basic measurement instructions. The back page of the guide contains extra information for those who’d like to use the WT3 system on PCs running Microsoft Vista.
Setup
The software installation doesn’t run automatically (as is
typical these days) off of an autorun file: there isn’t one to be found on the CD and the installation won’t
start automatically when you pop the CD in the drive. Rather, you have to
manually hunt for the setup.exe file and run the installation from that. (Partially in response to this review Dayton
Audio will be adding an Autorun.inf file to the WT3 distribution CD so that
installation will begin automatically when the CD is inserted). As well,the limited
Help Topics section mentioned at the top of this review are currently
being expanded to better cover impedance measurements of resistors, inductors,
closed and vented boxes.
Once installed, however, everything needed to run the WT3 system is in place, including the USB Audio Codec.
Overall, the installation of the WT3 compared to that of other commonly available products was quick and easy. The fact that the system is USB-based makes connection quite convenient as well. Overall, once installed, the convenience and ease-of-use of the product in practice is outstanding.
Calibration & Measurement
Once the software is installed, the application is up & running and the WT3 probe is plugged into a USB port everything is in place to finally begin measurement. Two things you’ll notice right away when you do connect the probe to a USB port: a blue LED on the probe lights up and the USB Audio Codec takes over. The blue LED is a minor but nice feature that lets you know the probe is active.
You’ll know the USB audio Codec is active because when it takes control, the PC focuses solely on the WT3 probe to the exclusion of all other audio process, which means you won’t be able, for example, to play music through your PC’s sound card while making measurements using the WT3.
Once the probe is plugged in, the manual recommends a 90-second wait time before you begin measurement. According to the manual, this wait is essential to allow the probe’s circuitry to stabilize. This required start up wait-time is a good time to set the Windows mixer Master Out and Wave levels to max as, once again, recommended by the manual. Setting levels anything above 50% is worth experimenting with; anything below 10% produces noisy, essentially useless data. For this review all measurements were made with Master & Wave levels set at 100%.
If you need to keep track of your Windows mixer settings for
different audio-related items, use something like Quickmix to keep track of
those settings. Quickmix uses templates you create to keep track of mixer
settings for different applications/requirements. So, for example, if you’re
using your sound card to make dB SPL measurements using software that requires
mixer settings be the same whenever the software is running, you can set up
QuickMix to remember those settings. You can then build a second template to
take care of the settings WT3 needs to see and recall them, via QuickMix,
whenever you need them. It’s a great way to go if you regularly need to recall
different mixer settings for different applications.
At any rate, once the probe is plugged in, the software up & running and the appropriate levels set in the mixer, its time to calibrate. Calibration of the WT3 involves both calibrating out the impedance of the probe leads as well as calibrating the system to the supplied 1 kΩ, 1% resistor. If you have a way of accurately measuring the value of the calibration resistor, then by all means do so and use that value when you run the Impedance Calibration utility. In the case of the calibration resistor supplied with this review sample, the actual value measured was .9976 kΩ. (Note: the measured value of the calibration resistor should only be used if the meter’s accuracy is BETTER than 1% (the resistor’s rating).

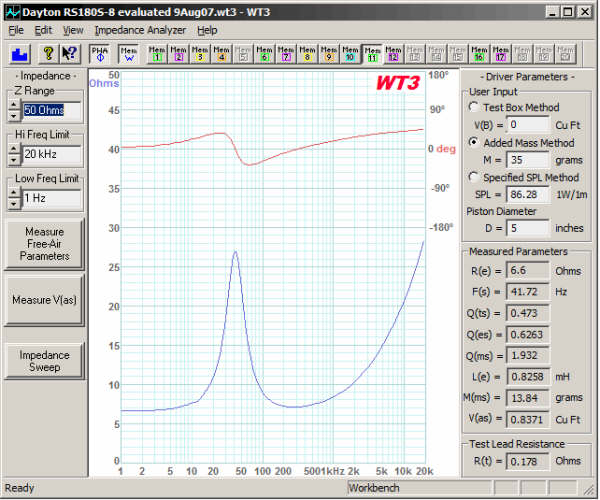

Both calibrations are easy enough and each takes just a few seconds to run. Click on Impedance Analyzer…, then Test Leads Calibration…, connect the WT3’s alligator clips together and run the calibration. Once that’s done, connect the supplied 1 kΩ calibration resistor to the alligator clips. Click on Impedance Analyzer… again, then Impedance Calibration … You’ll then be presented with a screen that asks for the value of the calibration resistor. Enter that value and click OK, the system calibrates itself and you are now ready to begin actual measurement.
Running both calibrations prior to actual measurement is essential to ensuring the measurement data you’ll be generating is as accurate as possible.
Recent Forum Posts:
The writer of the article implies that WT3 cannot provide SPL. While it's true that it cannot measure the driver's SPL it can calculate it.
In order to determine V(as) in WT3 for the driver being tested there are 3 methods:
1. input the driver SPL @1w/m as provided by the manufacturer (assuming you have a spec, and redundant in the context of this discussion)
2. mount the driver in a known (volume) closed enclosure and resweep
3. add a known mass (coins, plasticine etc) to the driver cone and resweep
When using either of the latter 2 methods, WT3 will automatically calculate the driver sensitivity and display the SPL @1w/m
*I have found both the closed box and added mass methods in WT3 to be very accurate as compared to micrphone SPL measurments
In fact, PE is now bundling a low cost (but sutably precise) digital scale to permit easy mass addition. This is the easiest method I have found.
I tried using coins as suggested by the WT3 docs (eg a Nickel is 5g) but found they jumped around too much.I now use a small "cookie" of automotive sealer (aka dum dum) that I roll into a ball, weigh, then flatten and place centered on the dome. It seems to have just enough tackiness to prevent "decoupling" when the sweep occurs. (after entering the mass of the added weight into the WT3 sotware)
after completing thee steps you will now have the driver V(as) AND SPL
Works for me!
WopOnTour
All of the volume levels for both audio out and record in should be at the max and the balance be set to the middle. If your settings are not these you will possibly see anomalies (i.e. strange spikes or dips, jagged plots, etc...) in the plot graphs.
Also in Vista on some systems the USB ports can be individually adjusted, so if you set it up on one port for testing and then the next day use a different port you may see anomalies in the measurements.
And as stated in the article there is a 90 second stabilization time for the unit, it is necessary to wait otherwise there will be anomalies in the test graphs.
And if you have it set up properly and calibrated and are getting strange graphs there could be two other causes:
1) Other noise in the testing area (i.e. kids, dogs barking, etc...) these things will affect the plot (testing should be done in a semi-quite room.
2) The .ini file became corrupted, just delete it and restart the WT3
Hope this helps.
