Epson's D7 Panels with C2 Fine Technology

Epson (technically "Seiko Epson Corporation") is putting a new type of high-temperature polysilicon TFT liquid crystal (HTPS) panel into its latest projectors that will further enhance the performance of 3LCD-type front projection products. The company has already begun volume production of these 0.7-inch (1.9 cm diagonal) HTPS panels which utilize Epson's C² Fine technology. The Epson Pro Cinema 1080 UB is the first projector we experienced with this new technology and it looked fantastic.

As the resolution and image quality of image sources continue to improve due to the proliferation of high definition broadcasting, technology seems determined to keep pace. This is largely the result of a lot of market competition - particularly in the DLP vs 3LCD arena. Epson began producing full high definition C² Fine panels for home projectors last year and things seem to be getting better and better. The new D7 model is an improved version of these HTPS panels.

The new panels, which conform to newly developed design rules, use a technology which boosts aperture ratios by 20% compared with the D6. By enhancing aperture ratios, this technology improves luminance while using the same lamp as previous models. That means the same lamp will result in brighter images. Conversely, manufacturers can insert lower-watt lamps to achieve the same levels of luminance experienced with a D6 panel. Thus the technology makes it possible to manufacture brighter, more environmentally friendly projectors that offer better value for the money.

The new panels also use 12-bit LCD drivers which boost accuracy in reproducing subtle differences in color and gradation. The previous model's 10-bit driver was capable of controlling 1.1 billion colors, but the new 12-bit driver is capable of controlling 64 times that amount at 68.7 billion colors. The new panels also quadruples the theoretical 1,024 gradation levels to 4,096 gradation levels.

In addition, various improvements have been made to make installation easier for product manufacturers, such as boosting noise immunity by utilizing mini-LVDS interface (the LCD panel's differential signal interface is called mini-LVDS) and strengthening panel tape (FPC).

Features of the new panels

The new panels combine high contrast, smooth images, and black color reproduction of C² Fine panels with the advantages of the hybrid driving technology (both internal and external drivers can be utilized) used in previous panels. The new panel features can be summarized as follows:

1. A 20% improvement in aperture ratio compared to the previous model of the same size.
2. Improved color reproduction by using a 12-bit LCD driver.
3. Improved noise immunity by using a Mini-LVDS interface.


Benefits for manufacturers of projection products

• Offers enhanced luminance with the same lamp.
• Enables use of a lower-watt lamp to achieve the same luminance (reduced power consumption).

New panel specifications

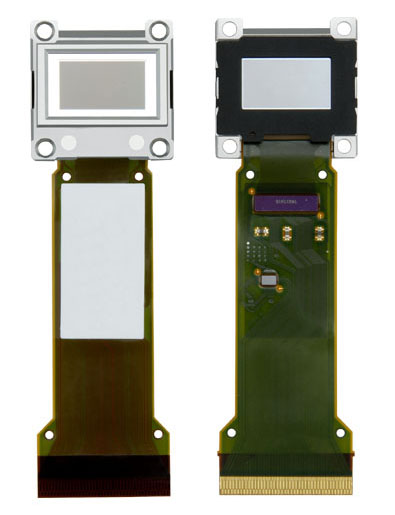

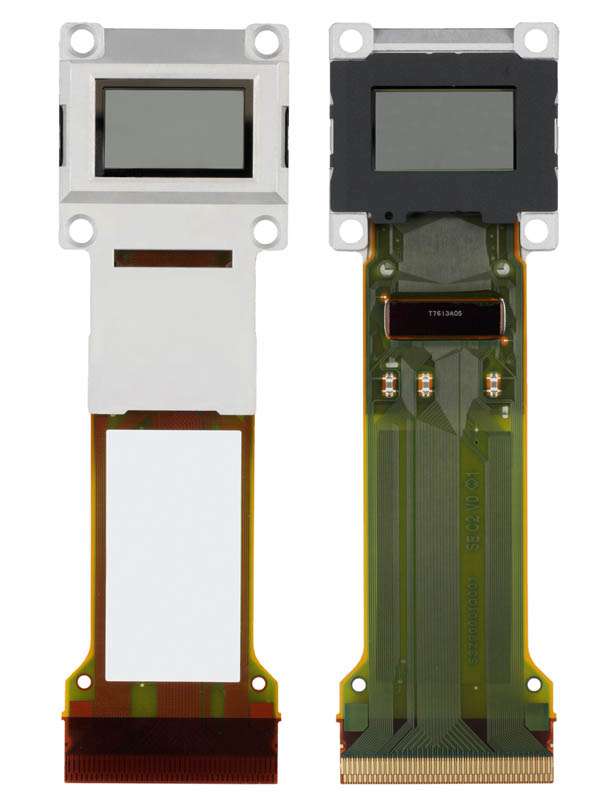

D6 HTPS panels (left); D7 HTPC panels (right)

Improvements in Image Representation Achieved Using 12-bit Driver

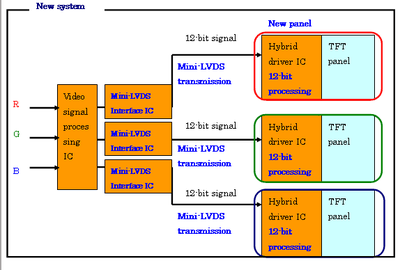

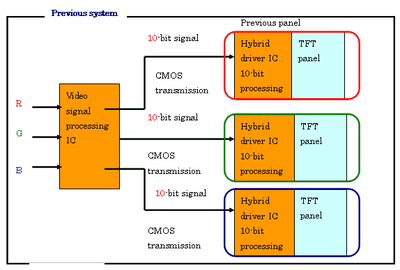

IC Configuration Diagram Comparison

The D7 panels are a definite improvement, but an incremental one. The main thing you'll see with these panels are an increased contrast ratio and a clear support for Deep Color options within the moving-target HDMI 13 specification. We haven't sen a practical demonstration of the benefits of the Mini-LVDS interface, but anything that serves to reduce noise is a welcome advancement. And of course LCD is a 3-chip solution - and for those of you susceptible to color wheel rainbow artifacts - 3LCD is looking better and better with every update.
